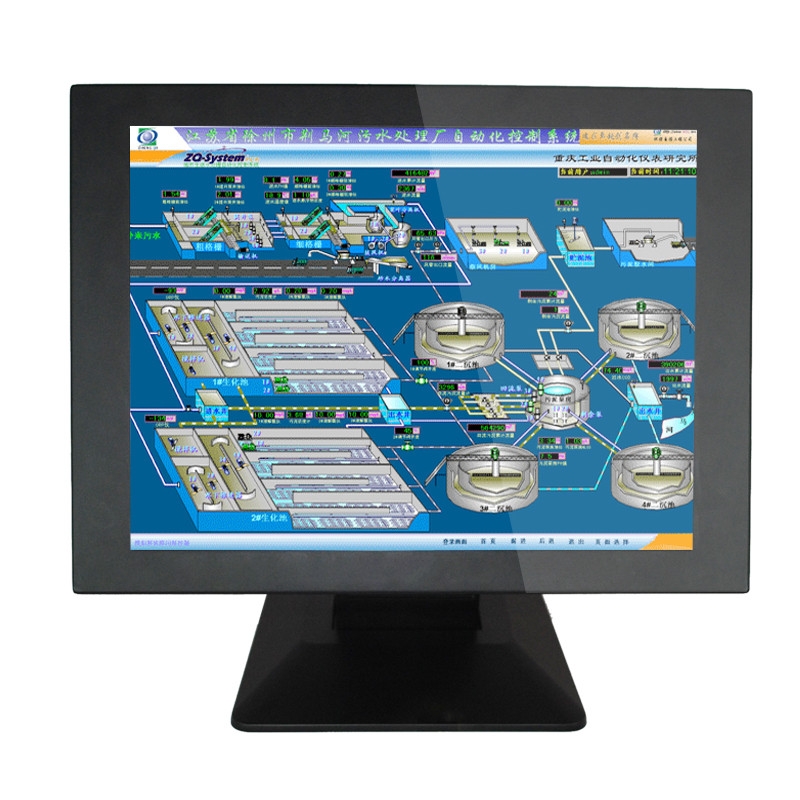

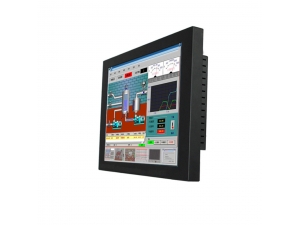

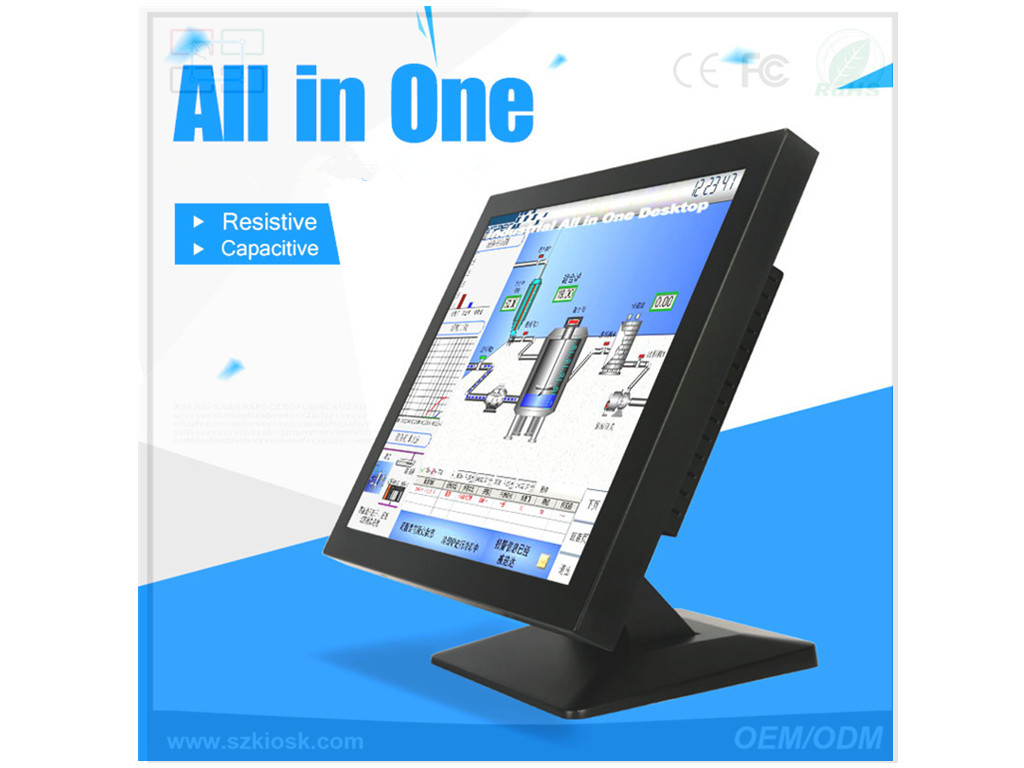

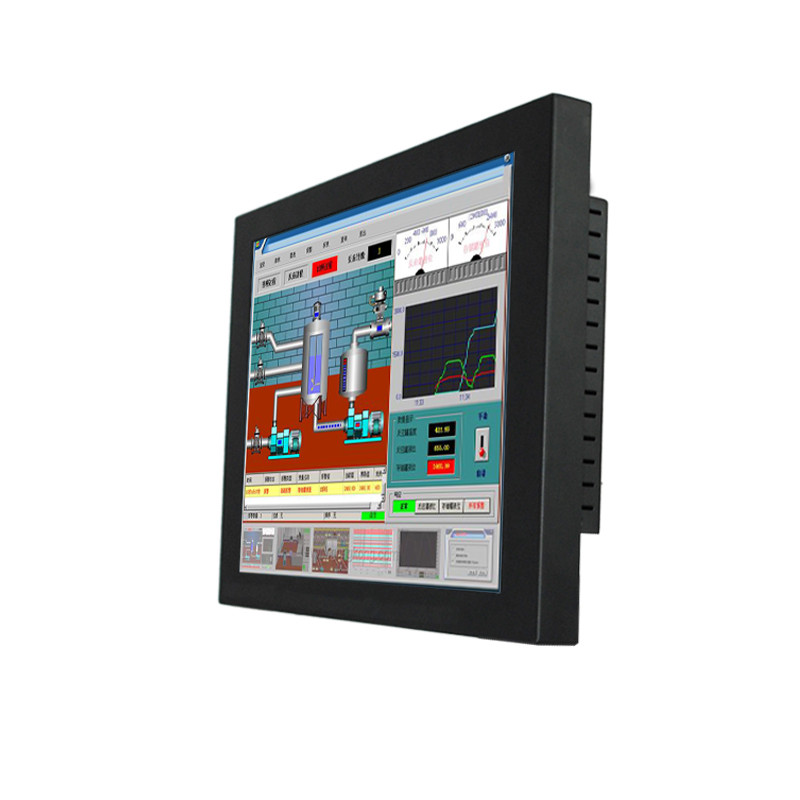

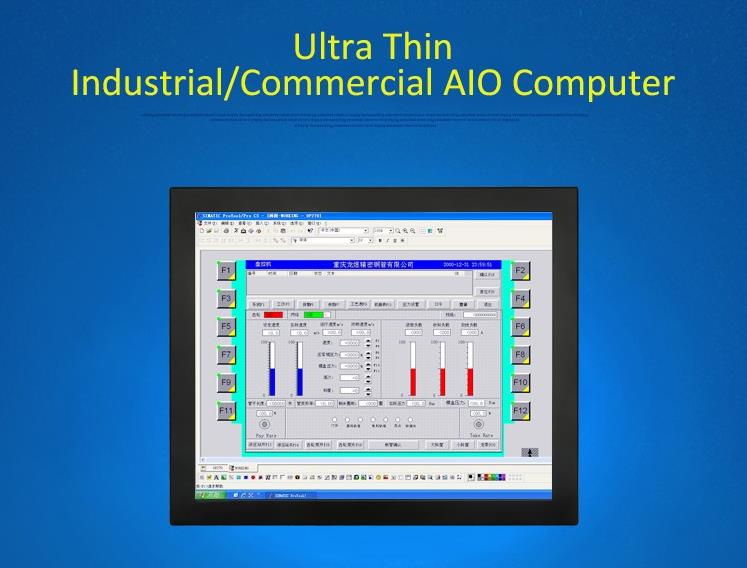

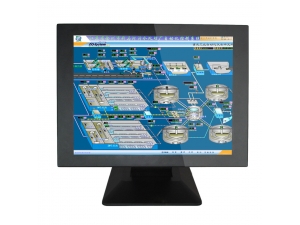

22 inch 5 wire resistive touch screen all in one pc
- Screen Size:22"
- Processor Brand:Intel
- Memory Capacity:2GB
- Hard Drive Capacity:320GB
- Graphics Card Type:Integrated Card
- Display Type:LCD
- Widescreen:Yes
- Optical Drive Type:DVD-ROM
- Processor Main Frequency:1.8GHz
- Memory:DDR2 SODIMM , 1G (up to 2GB )
|
Key Specifications |
||||
|
LCD panel spec |
LCD panel: |
22" wide Panel 16:9 |
||
|
Working Voltage: |
DC 11.5V-13V |
|||
|
Working Temperature: |
-10℃~60℃ |
|||
|
Input configuration: |
DVI /VGA/AV(option) |
|||
|
Screen size: |
22 inches (16:9 diagonal) |
|||
|
Resolutions: |
1680(H)×1050(V) pixel ,WSXGA+ |
|||
|
Overall dimension(mm) |
493.7*320.1*16.5(W*H*D) |
|||
|
Brightness: |
300cd/ m2 |
|||
|
Contrast: |
1000:1 |
|||
|
touch |
5-wire |
|||
|
touch port |
USB2.0 |
|||
|
Viewing angle |
TOP/BOTTOM 80-85Deg /---LEFT/RIGHT 85-89Deg |
|||
|
Response Time |
5ms |
|||
|
configuration |
CPU Intel Atom D525 dual core ,1.8GHz (200MHz*9.0). mini computer processor |
|||
|
4W,SUPPORT HT TECH,512KB L2 CACHE,533MHz FSB |
||||
|
motherboard, O.E.M Pinetrial-D (Inter N10 Family DMI Bridge -NM1 Family) |
||||
|
Memory 1. 2x 1.8V DDR2 SODIMM , 1G (up to 2GB ) |
||||
|
Graphics 1.Onboard Nvidia ION (512MB/Nvidia) |
||||
|
Audio 1. On board Realtek ALC662 Audio Codec, Inter 82801G(ICH7) HD Audio Controller |
||||
|
LAN 1. Integrated Realtek 8168D(P) / 8111D (P),1000M Lan chip, supports 10/100/1000M |
||||
|
Storage Interface 1. 4*SATA 3 Gb/s , suport ESATA |
||||
|
Support 6*USB 2.0 ports (2 need cable to connect) |
||||
|
SUPPORT DirectX 10,Shader Model 4.0,Pure Video HD |
||||
|
2 x SATA |
||||
|
1 x CPU fan header CPU |
||||
|
1 x system fan header |
||||
|

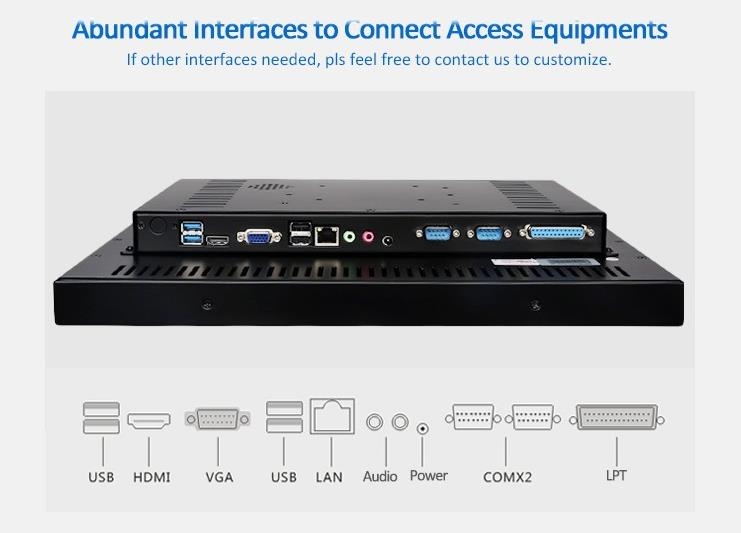

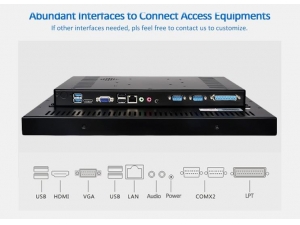

external ports |
1 x VGA port |
|||
|
1 x HDMI port |
||||
|
4 x USB 2.0 ports |
||||
|
1 x RJ-45 port |
||||
|
1 x com port |
||||
|
1 x WIFI connector (optional) |
||||
|
DC connector |
||||
|
power button |
||||
|
Form Factor 1.Mini 4.5”160*120mm |
||||
|
Work temperature 0~60 °C |
||||
|
Work humidity 10%~80% relative humidity, without freeze |
||||
|
Windows 2000 SP4,Windows XP SP2,Windows Vista and Linux Ubuntu 7.1 (with Device Driver) |
||||
|
RAM |
2G |
WIFI |
Optional, add 13$ |
|
|
HDD |
320G HDD/8G SSD |
Webcam |
Optional, add 10$ more. |
|
|
Accessories |
1pcs Stand Shelf (add $15) |
|||
|
1pcs motherboard cd drive |
||||
|
1pcs touch cd drive |
||||
|
1pcs VGA Cable |
||||
|
1pcs 8A AC/DC Power |
||||
|
Some Screw for Fixing the Shelf. |
||||
