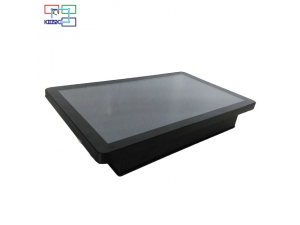

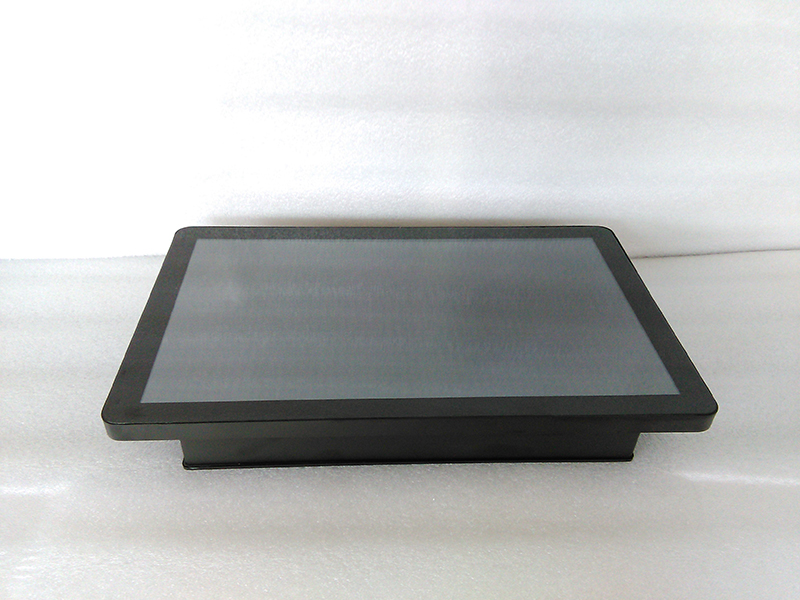

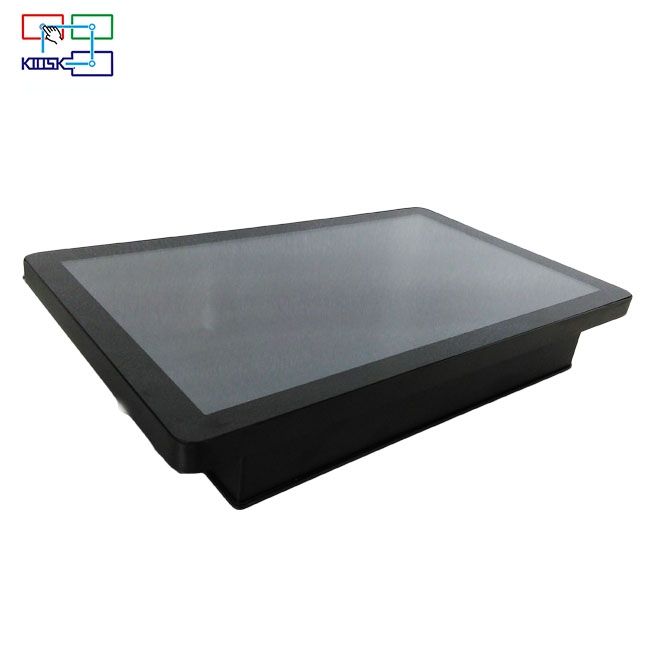

17"qualcore Touch All In One PC (IP54 Front Panel Waterproof) 2G 64GB SSD
- LCD panel:17" 16:9 digital panel
- Resolution:1280*1024
- Contrast:550:1
- Brightness:400 cd/m2
- Touch screen:5-wire resistive usb2.0
- Visual angle:up/down 65-60 Deg/ - left/right 70-70 Deg
| CPU | Fanlessly-cooled, soldered-down Dual-Core Intel® Atom™ Processor J19000(Qual Core 2.0ghz) with integrated graphics and integrated memory controller |
| motherboard | Intel J1900 Fanless Mini ITX Motherboard |
| chipsets | Intel® NM12 Express Chipset |
| memory | Two 204-pin DDR3 SDRAM Small Outline Dual Inline Memory Module (SODIMM) sockets |
| Support for DDR3 800 MHz and DDR3 1066 MHz SO-DIMMs Note: Higher speed SO-DIMMs supported at 1066 MHz if supported by the memory module. |
|
| 2G DDR3,Support for up to 4 GB of system memory on a single SO-DIMM (or two 2 GB SO-DIMMs) |
|
| harddisk | 500G harddisk / 32G SSD |
| graphics | Integrated graphics HD4000 |
| Audio | 2+2 Intel® High Definition (Intel® HD) audio via the Realtek* ALC888S audio codec |
| 8-channel (7.1) Intel High Definition Audio via the HDMI interface | |
| LAN | Gigabit (10/100/1000 Mbits/s) LAN subsystem using the Intel® 82574L Gigabit Ethernet Controller |
| Expansion Capabilities |
1 x Mini-PCI Express Card slot |

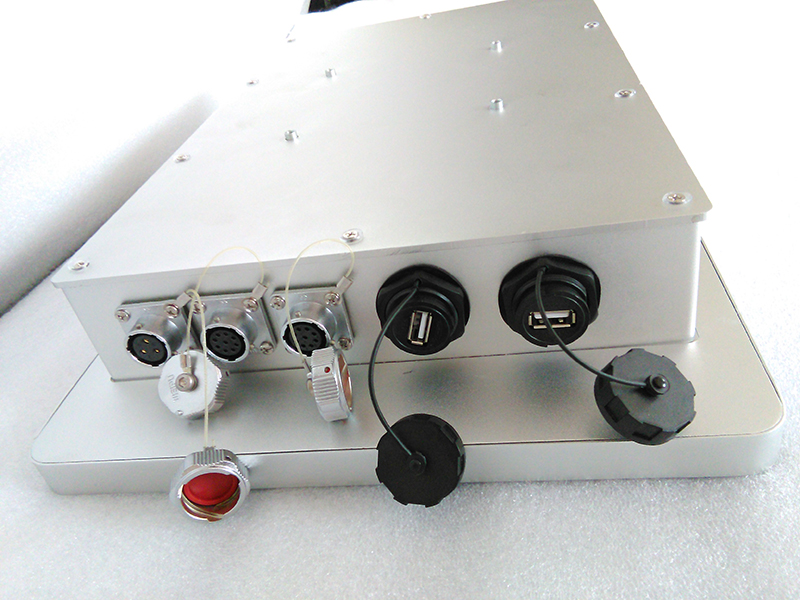

| External ports | 1 x VGA port(can add another VGA port) |
| 1 x HDMI port | |
| 5 x USB 2.0 ports(can add 2 x USB 3.0) --6USB can be customize with USB HUB | |
| 2 x RJ-45 port | |
| 6 x RS232 com ports,can expand to 10 x RS232 com ports | |
| 1 x WIFI connector | |
| DC connector | |
| power button | |
| Other functions | Support USB Dongle,M-SATA SSD,3G,Motherboard Diagnostic,etc |
| Color | Black/Silver/white |
| OS | Window 7 copied version |
| Form factor | Mini-ITX (170 x 170mm) |
| Working environment | Operating temperature: -20℃ ~ +60℃ |
| Storage temperature: -20℃ ~ +85℃ | |
| Operating humidity: 10% ~ 90%(without freeze) | |
| Storage humidity: 5% ~ 95%(without freeze) | |
| Other information | fingertip sensibility |
| DC12V, AC100-240V | |
| entire aluminum bezel | |
| IP54 front panel waterproof | |
| holes for standard VESA | |
| Accessories | 1pcs Stand Shelf |
| 1pcs motherboard cd drive | |
| 1pcs touch cd drive | |
| 1pcs touch pen | |
| 1pcs 8A power adapter | |
| Some Screw for Fixing the Shelf |
